| Uop Molecular Sieve 4A |
| Brands | Honeywell Performance Materials and Technology (China) Co., Ltd. |
| Chemical formula | Na12[(AlO2)12(SiO2)12]·xH2O |
| Brief introduction | Type 4A molecular sieve series A type crystal structure sodium type, is an alkali metal aluminosilicate, 4A type molecular sieve can adsorb molecules with a critical diameter not greater than 4 Å. |
| Applications | Type 4A molecular sieve adsorbent is suitable for static dehydration in a closed gas or liquid system, as a static desiccant in household refrigeration systems, pharmaceutical packaging, electronic components, and perishable chemicals, and as a dehydrating agent in paint and plastic systems . Type 4A can also be used for drying saturated hydrocarbon materials in industry. Any molecule that can be adsorbed on the 3A molecular sieve can be adsorbed on the 4A molecular sieve. |
| Regeneration | Type 4A molecular sieve can be regenerated and reused by purging or vacuuming when the temperature is increased. The degree of regeneration (dehydration) depends on the humidity and temperature of the purging gas. |

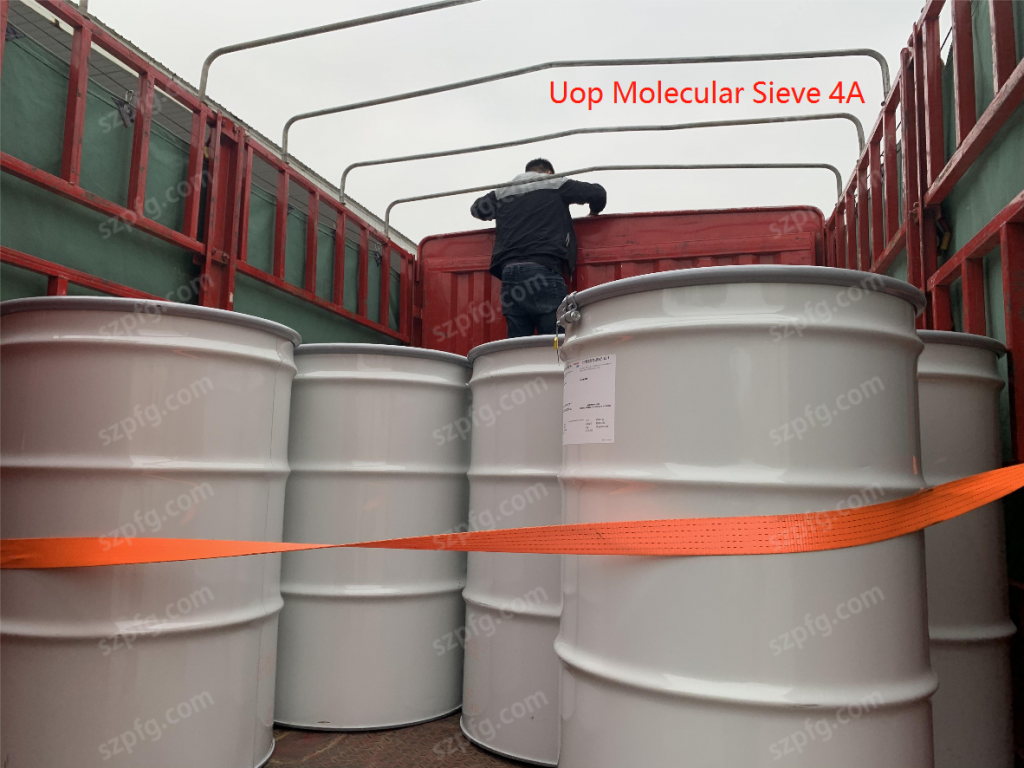

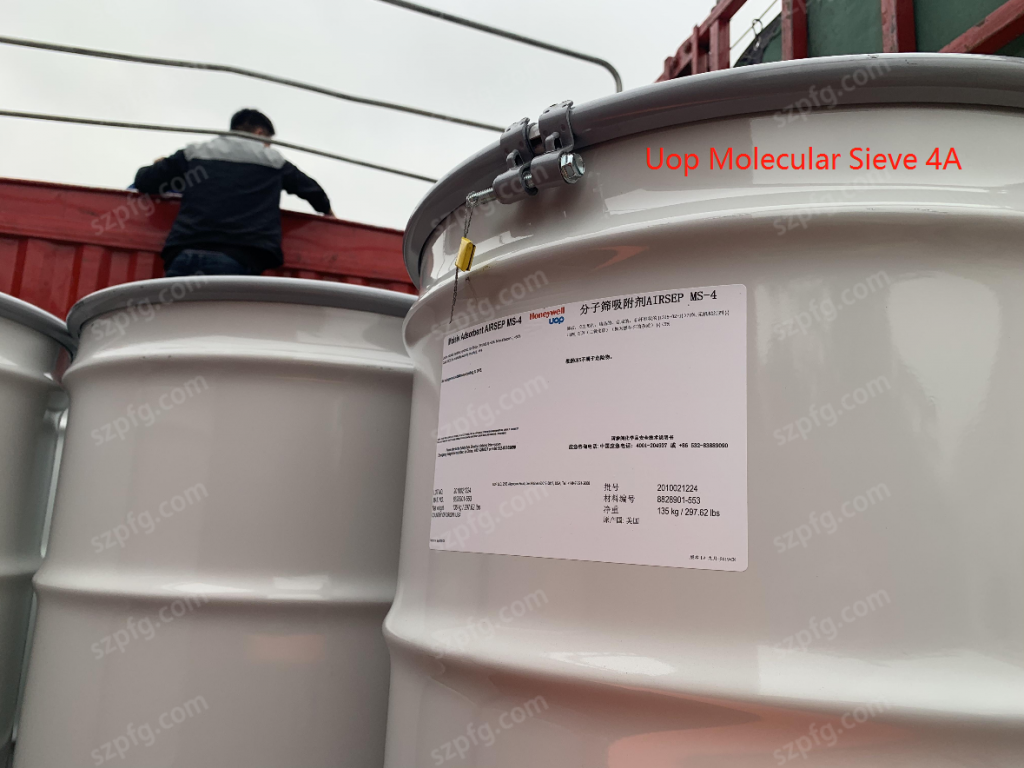

| Delivery | 4A molecular sieve has two forms, 4×8 and 8×12 spherical. Load and ship in sealed galvanized drums or packaging bags. |
| Product specifications | 4×8 | 8×12 |
| Project | Typical performance | Range | Typical performance | Range |
| Bulk density (kg/m 3) | 758 | 690~790 | 785 | 740~820 |
| Particle diameter (mm) | 4.03 | 3.90~4.10 | 2.09 | 2.0~2.20 |
| Breaking strength (N) | 100 | 65~120 | 39 | 30~45 |
| Water adsorption capacity* (wt, %) | 22.2 | 20.5~23.5 | 22.5 | 21.0~24.0 |
| Moisture content (when shipped) (WT,%) | 0.8 | 0.0~1.5 | 1.9 | 0.0~2.5 |
| Adsorbed molecules | Molecules with effective diameter < 4 Å, including ethanol, H2S, CO2, C2H4, SO2, C2H6, etc. |
| Expel molecules | Molecules with an effective diameter >4 Å, such as propane. |
| Capacity / Net weight (kg) | 55 gallon barrel (0.208 m3) / 135kg，Large bag packaging / 945kg |
| * The number of grams of water that can be adsorbed per 100 grams of activated adsorbent at a pressure of 17.5 mmHg and a temperature of 25°C |
| Unit Price(USD) | Uop Molecular Sieve 4A / 5.1usd/kg，Activated alumina / 3.2usd/kg，Minimum order quantity is 1 ton |
